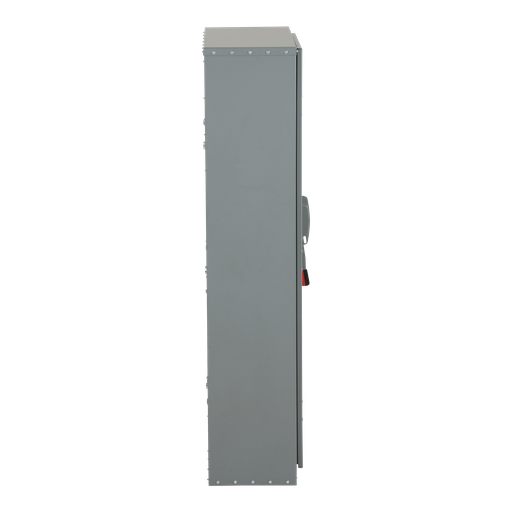

Square D H367N 600 VAC 800 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H367N | Springfield Electric Part # 181994
$7,965.45/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page Accessories Sheet
Safety switch, heavy duty, fusible, 800A, 4 wire, 3 poles, 1 neutral, 500hp, 600VAC/DC, Type 1

Technical Information

Action
SINGLE THROW
Amperage
800 Amp
Applications
HEAVY DUTY
Conductor Size
3/0 AWG-750 kcmil
Current
800 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
1
Enclosure Material
Stainless Steel
Enclosure Rating
1
Fuse Type
L
Line Rated Current
800 A
Material
Steel
Mounting Type
Surface
NEMA Size
1
Net Weight
168.3 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
17.75 IN,36.62 IN,69.13 IN
TC Connection
AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 3/0...750 kcmil copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901442417
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901442417
Product UPC
78590144241
Weight
371.04 lb

Dimensions

Depth
17-3/4 Inch
Height
69.13 Inch
Warranty Length
18 mth
Width
36.62 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
