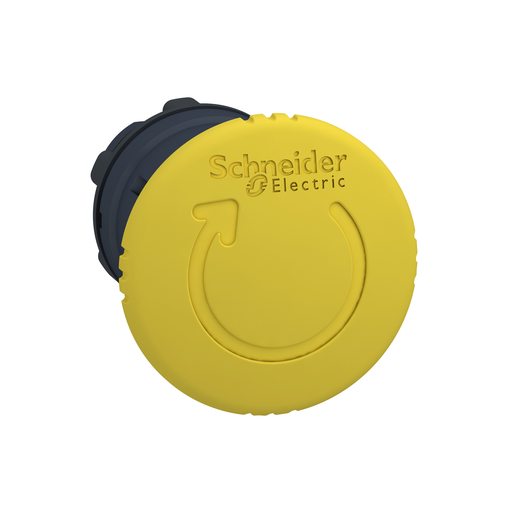

Square D ZB5AS55 22 mm Yellow Turn-to-Release Maintained Push Button Mushroom Head

Manufacturer: Square-D / Schneider | Catalog # ZB5AS55 | Springfield Electric Part # 182116

$104.25/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This yellow 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Action
LATCHING,TURN TO RELEASE
Actuator
LATCHING,YELLOW MUSHROOM Ø 40 MM, UNMARKED
Applications
MUSHROOM HEAD
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
YELLOW
Net Weight
0.044 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for non-illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901387602
Color
Yellow
Environmental Conditions
IP 65
GTiN
03389110906868
Product UPC
78590138760
Weight
0.10 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Czech Republic
