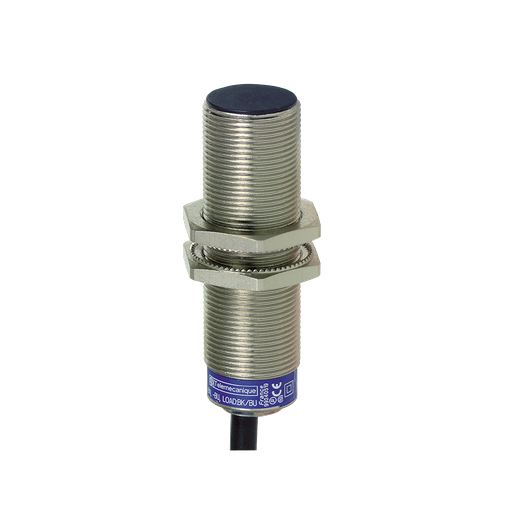

Square D XS518B1MBL2 18 mm 48 VDC 100 mA 1NC Nickel Plated Brass 2-Wire Inductive Proximity Sensor

Manufacturer: Square-D / Schneider | Catalog # XS518B1MBL2 | Springfield Electric Part # 182878

$112.01/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+70.C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified.

Technical Information

Applications
-
Enclosure
Nickel Plated Brass
Enclosure Material
Brass
Indicator
OUTPUT STATE 1 LED YELLOW)
Material
Metal
Net Weight
0.12 kg
Operating Temperature
-25-70 Adegrees C
Sensing Range
> 0.16...0.31 IN (> 4...8 MM)
Size
62 mm
Storage Temperature
-40-85 degrees C
Thread Type
M18 X 1
Type
Cylindrical M18;Inductive proximity sensor

Manufacturer Information

Family Brand Name
Schneider Electric
Sub Brand
XS5

General Product Info

GTiN
03389119046916
Product UPC
78590158445
Weight
0.26 lb

Dimensions

Cable Length
2 m
Height
18 mm
Length
62 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
