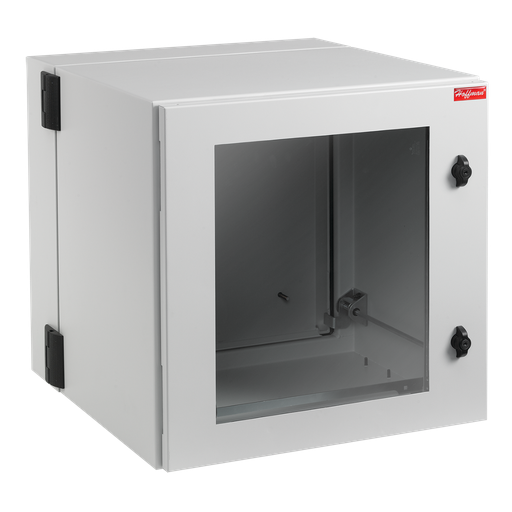

Product image for Hoffman PTHW362424G2 PROTEK Double-Hinged, UL and NEMA Type 4, 4X or 12, 36.30x 23.62x 24.02, Lt Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman PTHW362424G2 PROTEK Double-Hinged, UL and NEMA Type 4, 4X or 12, 36.30x 23.62x 24.02, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PTHW362424G2 | Springfield Electric Part # 182901
$2,648.94/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
ProTek Double-Hinged cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.

Technical Information

Applications
Networking, Storage and Data Center; Controls and Drives; Datacom and Telecom Equipment
Body Thickness
1.9 mm
Color Coding
RAL 7035
Cover Type
Viewing Window with Double-Hinged Cover
Material
Steel
Mounting Type
Wall
Rack Unit
19
Standard
CUL Listed Per CSA C22.2 No. 94; File Number E619967,IEC 60529, IP66 Or IP55, IK 10,NEMA / EEMAC: Type 4, 4X Or 12,Solid Door, Stainless Steel: Type 4, 4X And 12,Solid Door: Type 4 And 12,UL 508A Listed; File Number E61997,Window Door: Type 12
Type
Single Door, Double Lock

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProTek®

General Product Info

12-Digit UPC
783510236427
Color
RAL 7035 Light Gray
Finish
Powder Coated
GTiN
00783510236427
Product UPC
78351023642
Weight
138 lb

Dimensions

Depth
24 Inch
Height
36 Inch
Length
40-3/4 Inch
Width
24 in
Features
  • Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
  • Solid door provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Accessory
  • PTRA36T
  • PTRA36S
  • CP3220
  • CP3220W
  • CPMK24
  • EMS1918
  • EMSV1918
  • ESH1917
  • ESH1915
  • ESH1915V
  • ELHP
  • EPL4
  • DL36
  • PTWK
  • PTWPSS
