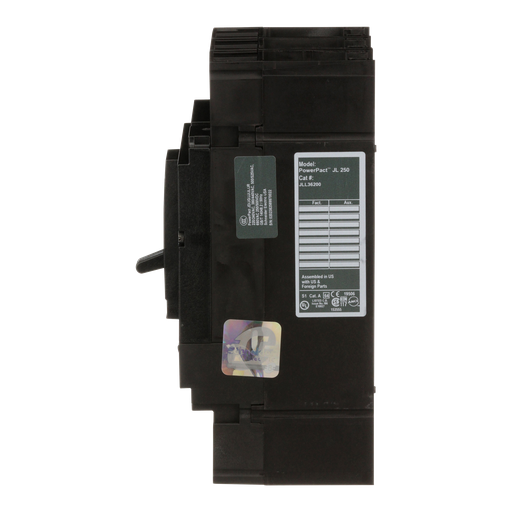

Square D JLL36200 600 Volt 200 Amp Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # JLL36200 | Springfield Electric Part # 182953

$7,921.18/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
The PowerPact. J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic. electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104.F (40.C) free air ambient temperature. Per the National Electric Code. (NEC.) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 125kA@240VAC and has a rated current of 200A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With a magnetic hold current of 1000A and a magnetic tripping current of 2000-2000A. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 .C. This product comes with an 18 month warranty. Common Design Features, Mounting holes, door trim, and handle accessories.

Technical Information

Amperage
200 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Control Type
Toggle
Frame
L
Interrupt Rating
20, 50, 100, 125 kAIC
Line Rated Current
200-200 A
Mounting Type
Unit Mount Lug)
Net Weight
2.4 kg
Number of Poles
3 Pole
Operating Temperature
40 Adegrees C
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
25 mm
TC Connection
AWG 3/0...350 KCMIL ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE
Trip Point
2000-2000 A
Trip Range
1000 A,200 A,2000 A
Trip Type
THERMAL-MAGNETIC
Type
Circuit breaker
Voltage
500 Volt

Manufacturer Information

Brand
Square D
Sub Brand
POWERPACT

General Product Info

GTiN
00785901883845
Product UPC
78590188384

Dimensions

Depth
86 mm
Height
191 mm
Length
3.39 Inch
Warranty Length
18 mth
Width
104 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
