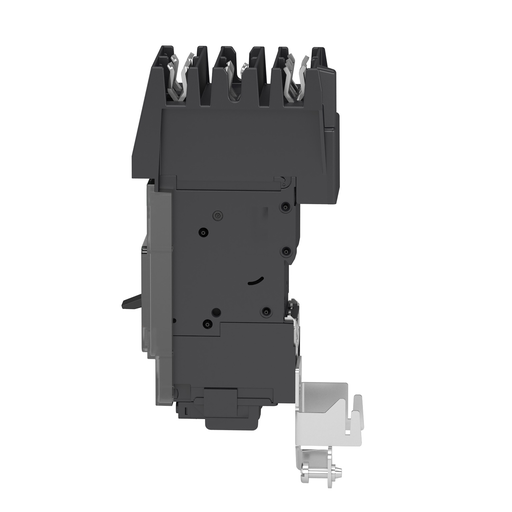

SQUARED BDA261002 PowerPact B Circu

Manufacturer: Square-D / Schneider | Catalog # BDA261002 | Springfield Electric Part # 183140

$711.99/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLinkĀ™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This PowerPact B, 100 A, 2P, circuit breaker has a breaking capacity of 14kA@600Y/347VAC@50/60 Hz per UL 489 standards. This circuit breaker has a thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This I-Line breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 14 / AWG 2/0, aluminum/copper. This breaker complies to UL, IEC, CCC, EAC, CSA, NOM standards Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),54 mm (W),89 mm (D) and a weight of 0.952kg. This breaker has a continuous current rating of 80% with an AC phase connection.

Technical Information

Amperage
100 Amp
Line Rated Current
100-100 A
Mounting Type
I-Line
Net Weight
0.952 kg
Number of Poles
2 Pole
Standard
CSA C22.2 No 5,EN/IEC 60947-2,EN/IEC 60947-5-1,GB 14048.2,NEMA AB1,NMX J-266,UL 489
Storage Temperature
-50-85 degrees C
Strip Length
20 mm
Voltage
525 Volt

Manufacturer Information

Family Brand Name
Square D

General Product Info

Color
Gray
GTiN
03606481152329
Product UPC
78590101864
Weight
2.10 lb

Dimensions

Depth
89 mm
Height
137 mm
Width
54 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,EAC,IEC,NOM,UL
Country of Origin
USA
