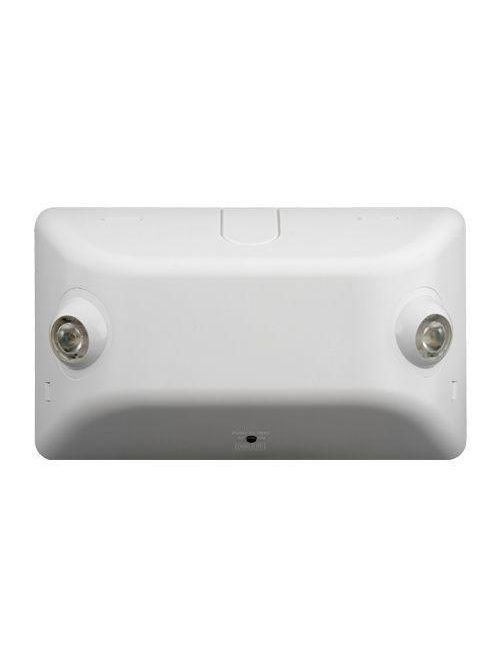

Hubbell Lighting EV2 1.45 W 120/277 VAC White Universal Emergency Light Fixture

Manufacturer: Dual-Lite | Catalog # EV2 | Springfield Electric Part # 183319
$93.66/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 6:00pm CT
0 available

For Delivery

Not available for delivery*
Check another branch
*Usually ships within 8 to 12 days
Product Spec Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
EV emergency light, Mounting Type: Wall or ceiling mount, Color: White, Number of Lamps: 2, Battery Type: Nickel Metal Hydride (NiMH), Battery Runtime: 90 min, Voltage Rating: 120/277 VAC, Environmental Conditions: Dry Location.

Technical Information

Input Voltage
120/277 V
Lamp Type
LED
Lamp Wattage
1.10 W
Light Source
LED
Material
Thermoplastic
Mounting Type
Wall Or Ceiling Mount
Number of Lamps
2,2
Standard
Listed To UL924 Standard,NFPA 101,NFPA 70 Damp Location Listed Optional RoHS
Type
Non-Reversing
Voltage
120/277 Volt
Wattage
1.10/2.00 Watt

Manufacturer Information

Brand
Dualite Sales & Service, Inc.

General Product Info

12-Digit UPC
782520865405
Color
White
Fixture Type
Emergency Light
Product Series
EV Emergency Light
Product UPC
78252086540
Weight
0.15 lb

Dimensions

Height
2-1/4 Inch
Length
8-1/2 Inch
Warranty Length
3 yr
Width
2.25 in

Certifications and Compliance

Country of Origin
China
Features
  • Architectural LED based emergency light for wall or ceiling commercial application.
  • High impact, flame rated and UV stable white thermoplastic housing.
  • Fully adjustable high output LED lamp-heads.
  • Environmentally Friendly Nickel Metal Hydride Battery.
  • Top mount conduit entry.
  • Temperature Range: 20°C to 30°C(68°F to 86°F), damp: 10°C to 40°C(50°F to 104°F).
  • UL924 Listed(optional damp location listed).
  • US Patent Pending.
  • Options.
  • Damp location listed
  • Self-Test/Self-Diagnostics
  • Black Finish
  • 220-240VAC Input
  • Accessories
