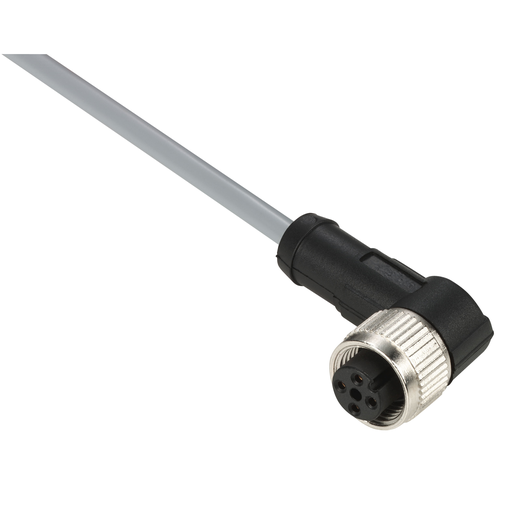

Product image for SQUARED XZCPV1241L2 Pre wired conne
Image thumbnail 0
Image thumbnail 1

Email

SQUARED XZCPV1241L2 Pre wired conne

Manufacturer: Square-D / Schneider | Catalog # XZCPV1241L2 | Springfield Electric Part # 183384

$16.31/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 5 pins M12 elbowed female connector with a metal collar. It is designed in polyvinyl chloride for general use. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 3A. Its contact resistance is 5000.Ohm and its minimum insulating resistance is 1G?. It is dustproof, resistant to water jets (IP65), and can be temporarily immersed in water (IP67). This cable has a length of 2m and a diameter of 4.6mm. It is made up of 4 wires, each section of which is 0.25 mm.. Its color is black and its weight is 0.09kg. It is intended for general use like machines with low environmental and mechanical stresses (-25.C to +80.C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Technical Information

Amperage
3 Amp
Applications
GENERAL PURPOSE
Enclosure
IP65-IP67
Line Rated Current
3 A
Net Weight
0.09 kg
Operating Temperature
-25-80 degrees C Static
Storage Temperature
-25-80 degrees C
TC Connection
Elbowed female connector M12, 4 pins
Type
General purpose;Cabling accessory;Pre-wired connectors
Voltage
250 Volt

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
389119073595
GTiN
03389119073592
Product UPC
78590108408
Weight
0.20 lb

Dimensions

Cable Length
2 m
Chain Cable Diameter
4.6 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CULus
Country of Origin
Germany
