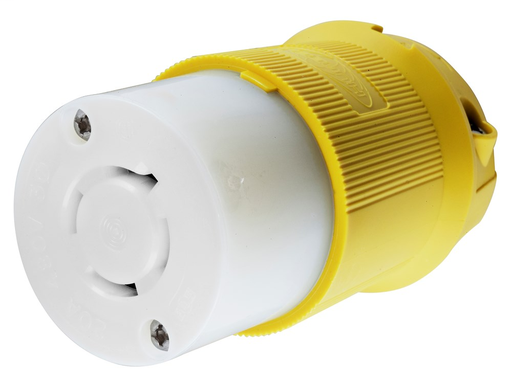

Hubbell HBL24CM33 20 Amp 480 Volt 3-Phase L16 Locking Device Connector

Manufacturer: Hubbell Wiring Device | Catalog # HBL24CM33 | Springfield Electric Part # 183462
$120.88/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 20A, 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20R, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
20 Amp
Grade
Marine
Grounding
Grounding
Horsepower
5 hp
Material
Nylon
Mounting Type
Cord
NEMA
L16-20R
Number of Conductors
4-Wire Grounding
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
2.33 in x 2.33 in x 3.86 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Insulgrip
Voltage
480 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585038520
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585038520
Product UPC
78358503852
Weight
0.35 lb

Dimensions

Height
2.418 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • 20A
  • 3 Phase 480V AC; 3 Pole
  • 4 Wire Grounding
Listings
  • Listed to UL 498
  • Certified to CSA C22.2 No.42
