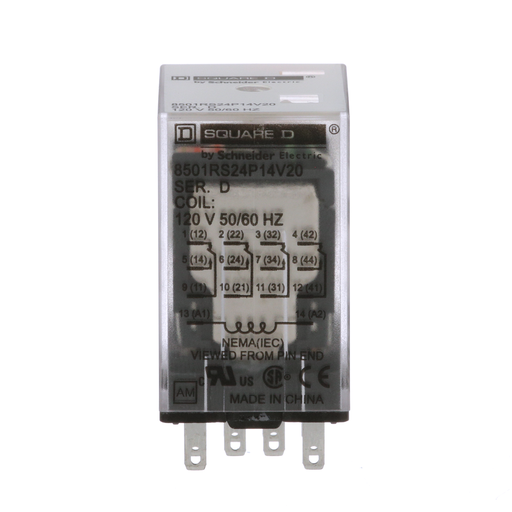

SQD 8501RS24P14V20 Plug in relay, T

Manufacturer: Square-D / Schneider | Catalog # 8501RS24P14V20 | Springfield Electric Part # 183537

$113.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 3 ampere resistive rating at 277 VAC, at 120 VAC and at 30 VDC, a 1/16 HP rating at 120 VAC, and a 0.5 amperage inductive break rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Technical Information

Applications
8501NR45
Contact Material
Gold Plated Bifurcated Silver
Mounting Type
Socket
Type
Miniature Relay;Low voltage;4PDT

Manufacturer Information

Brand
Schneider Electric

General Product Info

GTiN
00785901967088
Product UPC
78590196708

Dimensions

Depth
41.5 mm
Height
27.9 mm
Warranty Length
18 mth
Width
21 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
