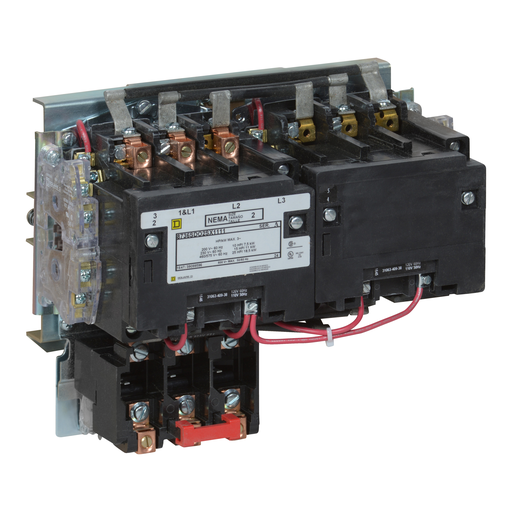

Square D 8736SDO2V03 220/240 VAC 45 Amp 25 Hp 3-Phase 3-Pole Open Type Full Voltage Reversing Magnetic Starter

Manufacturer: Square-D / Schneider | Catalog # 8736SDO2V03 | Springfield Electric Part # 183604

$2,806.81/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged horizontally. This 3 pole NEMA Size 2 reversing starter has an 45 ampere rating. This three phase NEMA Size 2 reversing starter has 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA reversing starter is an open device without an enclosure. This starter is 8.50 inches tall, 9.00 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.

Technical Information

Amperage
45 Amp
Applications
USED FOR FULL-VOLTAGE REVERSING, STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Contact Configuration
Without
Current
45 Amp
Enclosure
OPEN
Line Rated Current
45 A
NEMA Size
2
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Supply
240VAC@60HZ - 220VAC@50HZ
Reset Type
MELTING ALLOY 3
Size
2
TC Connection
BOX LUG
Type
REVERSING STARTER
Voltage
600 VAC

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901455592
GTiN
00785901455592
Product UPC
78590145559

Dimensions

Depth
153.16 mm
Height
215.9 mm
Warranty Length
18 mth
Width
228.60 mm

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
