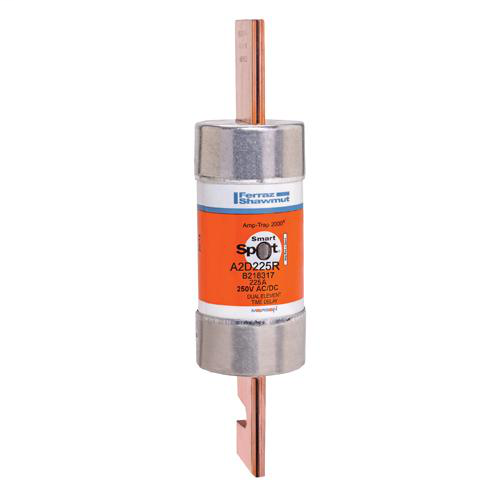

Mersen A2D225R 225 Amp 250 Volt Class RK1 Time Delay Fuse

Manufacturer: Ferraz Shawmut | Catalog # A2D225R | Springfield Electric Part # 184044

$614.54/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Amp-Trap 2000 SmartSpot time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.

Technical Information

Amperage
225 Amp
Applications
Motors Safety Switches Transformers Disconnects Control Panels All General-purpose Circuits
Fuse Class
Class RK1
Indicator
SmartSpot
Insulation Material
PolyTube
Interrupt Rating
200 kAIC
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Blade
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
North American Power Fuses
Voltage
250 VAC

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap 2000, SmartSpot

General Product Info

Class
RK-1
GTiN
00782001991111
Product UPC
78200199111
Weight
1.91 lb

Dimensions

Diameter
2.06 Inch
Length
8.63 Inch
Applications
  • Safety switches
  • All general-purpose circuits
  • Disconnects
  • Control panels
  • Branch circuit protection
  • Transformers
  • Motors
  • 600VAC & 600VDC dual rated
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and black outs
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • High-visibility orange label gives instant brand recognition
  • Solid state SmartSpot visual blown fuse indicator
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • Recommended for Arc Flash energy reduction
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • Time-delay for motor starting and transformer inrush currents without nuisance opening
  • Extremely current-limiting for low peak let-thru current
Approvals & Standards
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.12
  • UL listed to standard 248-12 File E2137
