Hubbell HBL2530 20 Amp 347/600 Volt 4-Pole 5-Wire NEMA L23-20R Black Single Flush Locking Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL2530 | Springfield Electric Part # 184139
$101.84/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 20A 347/600V AC, 4-Pole 5-Wire Grounding, NEMA L23-20R, Screw Terminal, Nylon face, Back and side wired, Black.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L23-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire Grounding
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
347 Volt
Wattage
12000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235899
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585235899
Product UPC
78358523589
Weight
0.30 lb

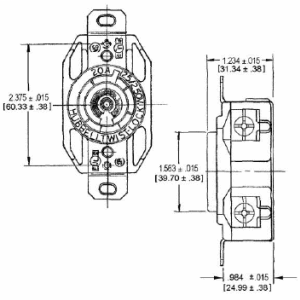

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • 20A
  • 3 Phase Y 347/600V AC
  • 4 Pole
  • 5 Wire Grounding
Listings
  • Listed to UL 498
  • Certified to CSA C22.2 No.42
