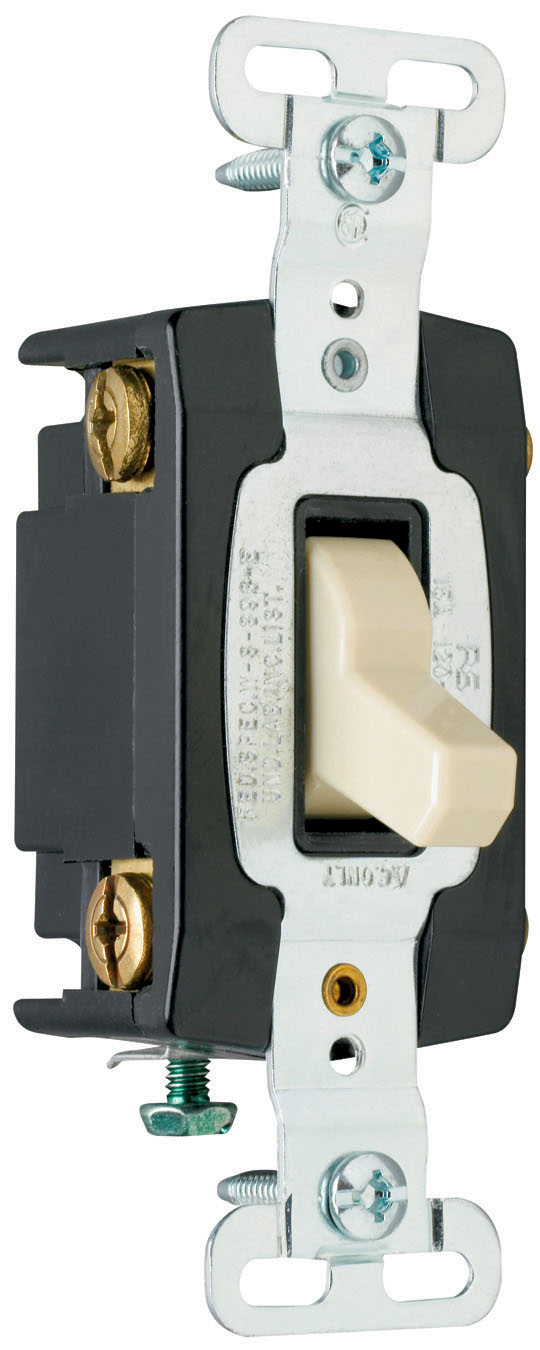

Product image for Pass & Seymour PS15AC4 4way Toggle Switch, Back & Side Wire, 15A 120/277V - Brown
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PS15AC4 4way Toggle Switch, Back & Side Wire, 15A 120/277V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # PS15AC4 | Springfield Electric Part # 184178
$79.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Brochure
4way Toggle Switch, Back & Side Wire, 15amp 120/277volt, Light Almond

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Material
Thermoplastic
Number of Poles
2 Pole
Operating Cycles
50000
Size
3.3"
Type
Heavy Duty, 4-Way, High Strength
Voltage
120 Volt
Wattage
4 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007196719
Color
Brown
GTiN
00785007196719
Product UPC
78500719671
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.320 in

Certifications and Compliance

Certifications
CSA,FEDSPEC,UL
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of istallation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.\
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.\
Certifications
  • Federal Spec Listed
  • CSA Listed
  • UL Listed
