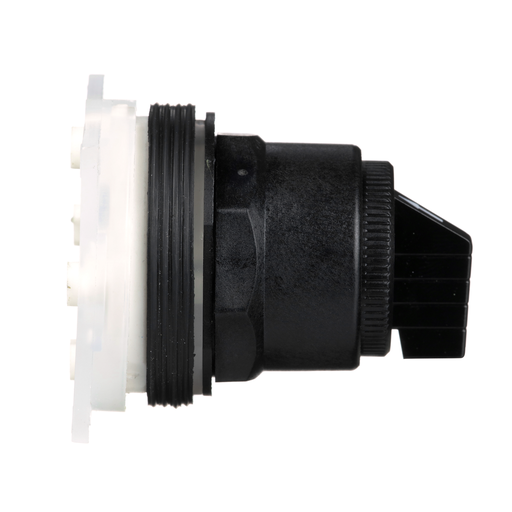

Square D 9001SKS43B 30 mm 3-Position Black Maintained Knob Non-Illuminated Selector Switch Operator

Manufacturer: Square-D / Schneider | Catalog # 9001SKS43B | Springfield Electric Part # 184192

$66.62/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 5:00pm CT
0 available

For Delivery

Not available for delivery*
Check another branch
*Usually ships within 8 to 12 days
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Technical Information

Action
MAINTAINED
Applications
NON ILLUMINATED PUSH-BUTTON
Bezel Material
Plastic
Contact Configuration
NO CONTACT BLOCKS
Enclosure
NEMA 1/2/3/3R/4/4X/6/12/13
Operating Temperature
-25-70 Adegrees C
Size
30 MM
Storage Temperature
-40-70 degrees C
Type
SELECTOR SWITCH
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001SK

General Product Info

Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389118036154
Product UPC
78590152437

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
