SQD VLS1P040R1S Disconnect switch,

Manufacturer: Square-D / Schneider | Catalog # VLS1P040R1S | Springfield Electric Part # 184340
$33.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Accessories Sheet

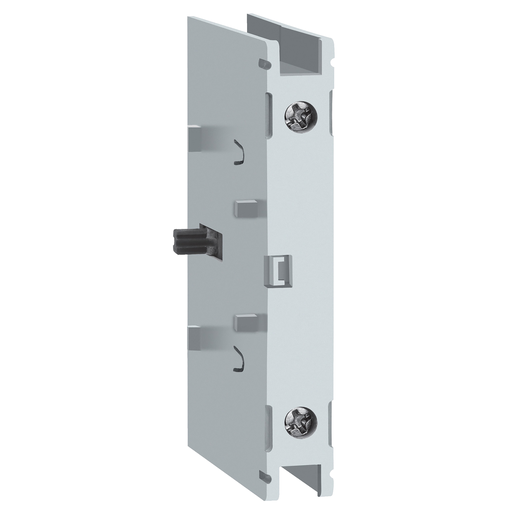

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1 or VLS3P040R1 DIN rail mount switch. This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 40 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Fourth pole adder is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.

Technical Information

Amperage
40 Amp AC-21A UE: 400 V-40 Amp UE: 600 V UL 508-40 Amp AC-21A UE: 500 V-40 Amp AC-21A UE: 690 V-40 Amp AC-22A UE: 400 V-40 Amp AC-22A UE: 500 V-40 Amp AC-22A UE: 690 V-40 Amp AC-23A UE: 400 V-25 Amp AC-23A UE: 500 V-25 Amp AC-23A UE: 690 V
Applications
TESYS VARIO LS VLS3P
Contact Configuration
1 NO
Contact Rating
Simultaneous
Interrupt Rating
60, 120, 320 AIC
Net Weight
0.04 kg
Number of Poles
1 Pole
Operating Temperature
-25-55 degrees C
Size
1.72 in
Standard
CSA C22.2 No 14,IEC 60947-3,UL 508
TC Connection
POWER CIRCUIT SCREW CLAMP TERMINALS 10-10 MMA SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA FLEXIBLE - WITHOUT CABLE END
Type
Additional pole
Voltage
690 Volt
Wattage
18.5 kW 400 Volt AC-23 Amps)-18.5 kW 500 Volt AC-23 Amps)-22 kW 690 Volt AC-23 Amps)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VLS1P

General Product Info

Color
Gray
GTiN
00785901566298
Product UPC
78590156629
Weight
0.09 lb

Dimensions

Depth
43.6 mm
Height
78 mm
Width
12 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CULus,GL
Country of Origin
Italy
