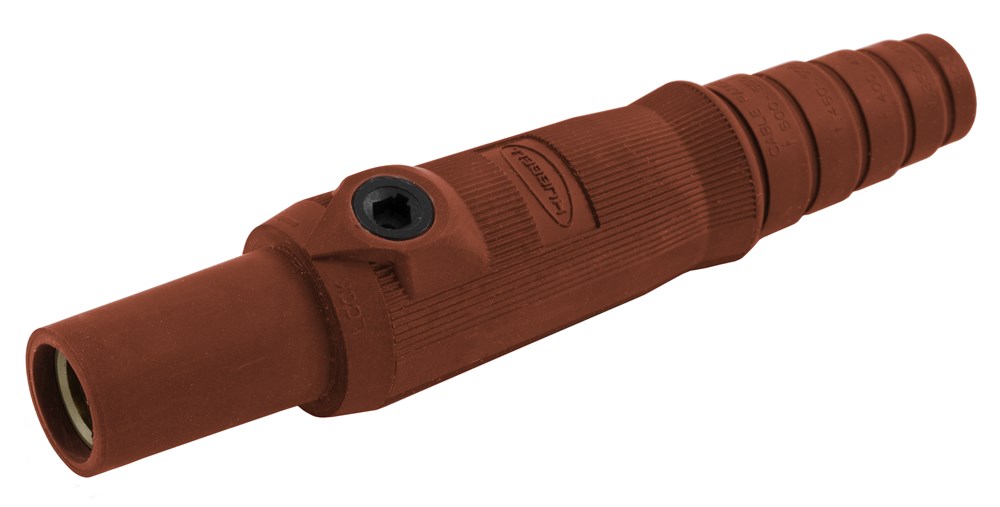

Hubbell HBL15FR SINGLE POLE SER 15 FeMale Plug, 150A, RD

Manufacturer: Hubbell Wiring Device | Catalog # HBL15FR | Springfield Electric Part # 184370
$58.34/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Accessories Sheet
Single Pole Products, Female Plug, 150 Amp Series, Red

Technical Information

Amperage
150 Amp
Applications
Temporary Electrical Power
Current
150 Amp
Material
Brass
Number of Conductors
1 Conductor
Number of Poles
1 Pole
Size
Standard
Standard
12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Style
Female
TC Connection
Set Screw
Temperature Rating
-40 degrees C
Type
Plugs
Voltage
600 AC or 250 DC Max Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Single Pin

General Product Info

Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585458397
Product Series
Series 15
Product UPC
78358545839

Dimensions

Height
2.1 Inch
Length
8 Inch
Width
6.000 in

Certifications and Compliance

Country of Origin
China
Features
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit
Performance
  • Electrical - Amperage Rating - 150A Maximum
  • Electrical - Voltage Ratings - 600V AC Maximum
  • 250V DC Maximum
  • Mechanical - Product Identification - Ratings are a permanent part of device
  • Mechanical - Terminal Accommodation - #8 to #2 AWG
Industry Standard(s)
  • National Electric Code (NEC), ANSI/NFPA 70
  • UL and cUL Listed
  • UL Enclosure Types 3R, 4X, 12
