Hubbell CR15-ITR Tamper Resistant Duplex Receptacle, Commercial Grade, 15A 125V - Ivory

Manufacturer: Hubbell Wiring Device | Catalog # CR15ITR | Springfield Electric Part # 184549
$7.47/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 6:00pm CT
0 available

For Delivery

Not available for delivery*
Check another branch
*Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Accessories Sheet
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Grounding
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Tamper Resistant?
Yes
TC Connection
Back and Side Wired
Type
Traditional, Tamper-Resistant, Standard Size
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585144221
Product UPC
78358514422
Weight
0.15 lb

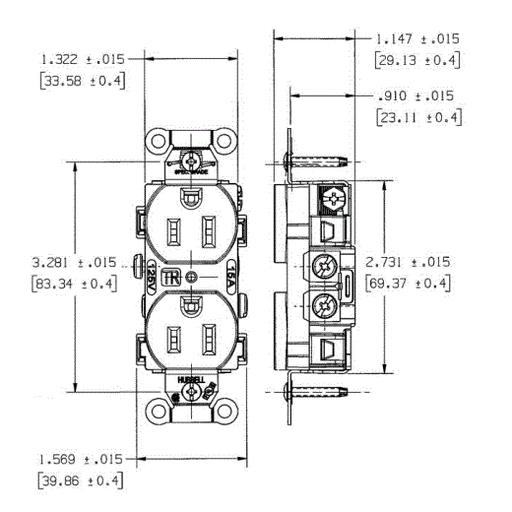

Dimensions

Height
1.2 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Smooth face
  • Triple wipe contacts
  • Tamper Resistant
