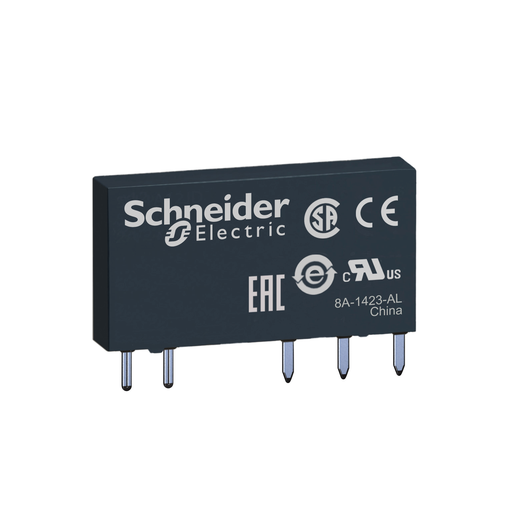

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 12V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
6 Amp 250 V AC 0.5 MM MOUNTING DISTANCE,6 Amp AC-1/DC-1)IEC/UL
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Line Rated Current
6 A
Net Weight
0.005 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 360 Cycles/hour Under Load
Operating Temperature
-40-55 degrees C
Resistance
848 OHM AT 23 AC +/- 10
Size
0.73 in
Standard
CSA C22.2 No 14,EN/IEC 61810-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FLAT (PCB TYPE)
Type
Plug-in relay;Flat (PCB type)
Manufacturer Information
Brand
Schneider Electric
Sub Brand
RSL
General Product Info
12-Digit UPC
606480077954
GTiN
03606480077951
Product UPC
78590169499
Weight
0.01 lb
Dimensions
Depth
18.5 mm
Height
28 mm
Warranty Length
18 mth
Width
5 mm
Certifications and Compliance
CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
