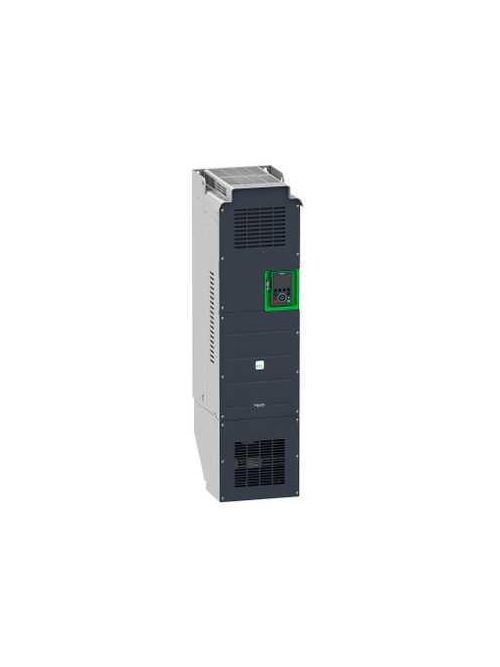

SQD ATV930C16N4C Variable speed dri

Manufacturer: Square-D / Schneider | Catalog # ATV930C16N4C | Springfield Electric Part # 185459

$24,976.35/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

Technical Information

Applications
Industrial Application;Synchronous motors;Asynchronous motors
Mounting Type
Wall-Mounted
Net Weight
82 kg
Number of Phases
3 Phase
Output Voltage
<= power supply voltage
Size
15.47 in
Standard
EN/IEC 61800-3,EN/IEC 61800-5-1,IEC 13849-1,IEC 60721-3,IEC 61000-3-12,IEC 61508,UL 508C
Storage Temperature
-40-70 degrees C
Type
Variable speed drive

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTIVAR PROCESS ATV900

General Product Info

Environmental Conditions
-15-50 A?C WITHOUT)-50-60 A?C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3
GTiN
03606480883477
Product UPC
78590183387
Weight
180.78 lb

Dimensions

Depth
393 mm
Height
852 mm
Width
320 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
India
