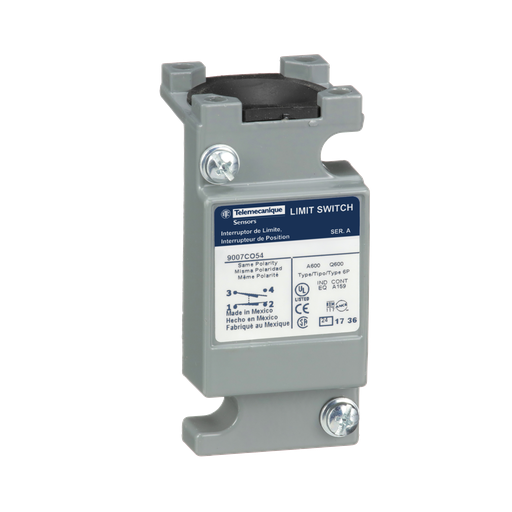

Product image for Square D 9007CO54 10 Amp 600 Volt SPDT 1NO 1NC Heavy Duty Plug-In Snap Action Limit Switch Body
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5

Email

Square D 9007CO54 10 Amp 600 Volt SPDT 1NO 1NC Heavy Duty Plug-In Snap Action Limit Switch Body

Manufacturer: Square-D / Schneider | Catalog # 9007CO54 | Springfield Electric Part # 185508

$182.65/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
9007C NEMA heavy duty industrial limit switches are designed to meet many domestic and international standards. The metal body of these limit switches can withstand the impact of heavy industry. This modular limit switch line has five bodies types, 20 different heads and more than 200 lever arms. The 9007C limit switches are UL Listed and CSA certified. 9007C limit switches can be used in material working, packaging, material handling, conveying, food and beverage, mining and mineral, construction, oil and gas, and crane and hoist applications. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. It offers mechanical durability of about 10 million operating cycles and electrical durability of about 1 million operating cycles. It is made of zinc with epoxy powder coat finish. Its dimensions are 39.37mm (width) x 45.47mm (depth) x 79.76mm (height) and weighs 0.57kg. This product is certified by UL, CSA and CE. It complies with UL 508, NEMA 250 and C22-2-14 standards. It is associated with 9007CT54 connection component. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry. This constitutes a comprehensive range of limit switches rigged and dependable built with unparalleled quality.

Technical Information

Action
Snap action
Amperage
10 Amp
Applications
9007C
Body Material
Zinc
Body Type
Standard plug-in
Contact Configuration
NC-NO
Contact Material
Silver
Contact Rating
NEMA A600/Q600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Net Weight
1.25 lb
Number of Poles
1 Pole
Number of Steps
1
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Size
1.79 in
Storage Temperature
-20-185 degrees F
Type
Limit switch plug-in unit
Voltage
1.2 A 600 Volt AC, A600 NEMA RATING DESIGNATION-1.5 A 480 Volt AC, A600 NEMA RATING DESIGNATION-3 A 240 Volt AC, A600 NEMA RATING DESIGNATION-6 A 120 Volt AC, A600 NEMA RATING DESIGNATION-0.1 A 600 Volt DC, Q600 NEMA RATING DESIGNATION-0.27 A 250 Volt AC, Q600 NEMA RATING DESIGNATION-0.55 A 125 Volt DC, Q600 NEMA RATING DESIGNATION

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007C

General Product Info

12-Digit UPC
785901500841
Environmental Conditions
Standard environment
GTiN
00785901500841
Product UPC
78590150084
Weight
1.25 lb

Dimensions

Depth
1.79 Inch
Height
3.14-3.14 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
