BUR GC2929CT 2/0STR-250 CABLETRAY

Manufacturer: Burndy | Catalog # GC2929CT | Springfield Electric Part # 185788
$162.91/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Accessories Sheet

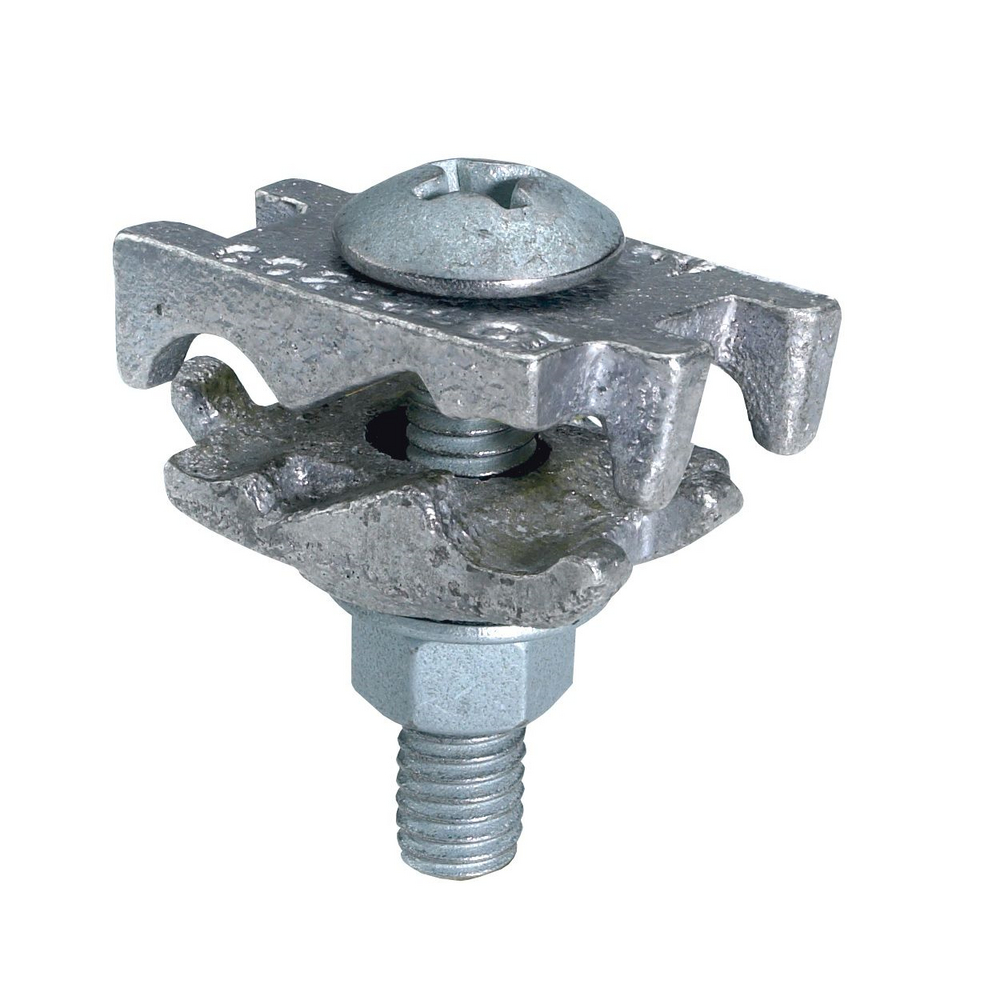

Cast CU Alloy Cable Tray Ground Clamp, 2/0 Str.-250 kcmil, Tin-plated.

Technical Information

Applications
Direct Burial Applications in Concrete or Earth and for Used with Aluminum or Galvanized Steel Cable Tray, Flat Conductor
Conductor Size
2/0 AWG-250 kcmil
Material
Copper
Plated?
Yes
Plating Type
Tin
Type
GC-CT

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

Finish
Tin Plated
GTiN
00781810220580
Product UPC
78181022058

Dimensions

Height
2.2 Inch
Length
1.12 Inch
Width
1.98 in

Certifications and Compliance

Country of Origin
Mexico
CSA
Yes
Features
  • Made Of Tin-Plated Cast Copper Alloy, It Accommodates Either One Or Two Conductors, Copper Or Aluminum Cable, In Addition To A Low Profile Head With A Deep Phillips Recess, The Galvanized Steel Bolt Has A Ribbed Neck Which Prevents Rotation During Installation When Installed In A 0.44 Diameter Hole, When Used On Aluminum Conductor, The Cable Must Be Scratch Brushed And PENETROX A Joint Compound Must Be Used On Cable And Connector, UL467 Listed For Copper Conductor Only, Suitable For Direct Burial In Concrete Or Earth, The Bolt Head Is Mounted On The Inside Wall Of Cable Tray To Avoid Damage To The Cable Insulation, May Be Used With Aluminum Or Galvanized Steel Cable Tray, Stud/bolt Size: 3/8-16, Installation Torque: 240 IN-LB, Width: 1.98 IN, Cross Flats: 0.56 IN, Height: 2.2 IN, Dimension B: 1.12 IN
