BUR KA25U 14STR-1/0STR DUAL RATED

Manufacturer: Burndy | Catalog # KA25U | Springfield Electric Part # 186124
$4.61/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Accessories Sheet

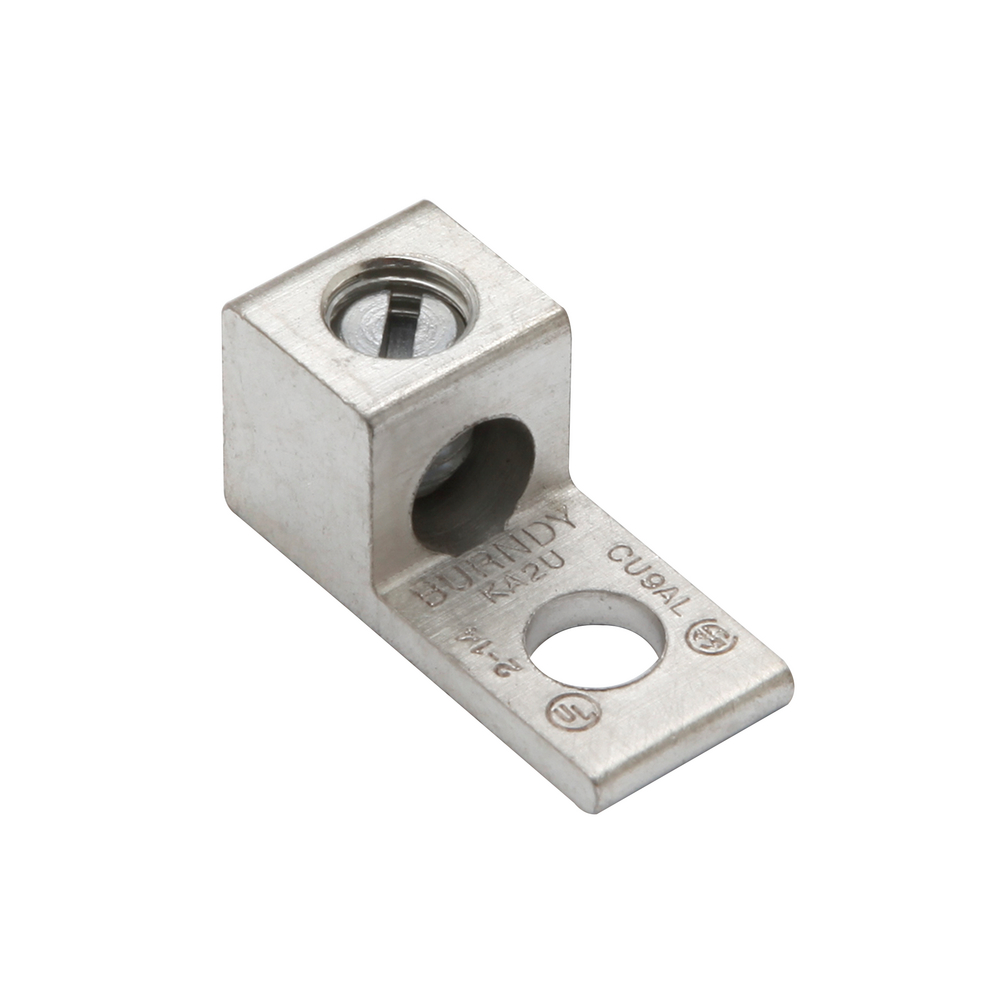

Aluminum Universal Terminal, 1 Hole, 14-1/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Aluminum And Copper Conductors
Bolt Hole Size
0.25 in
Bolt Size
1/4 in
Conductor Size
14-1/0 AWG
Conductor Type
Aluminum and Copper
Connection Type
Terminal
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin
TC Connection
1 Screw
Temperature Rating
194
Type
KA-U, Universal, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810370193
Finish
Electro-Tin Plated
GTiN
00781810370193
Product UPC
78181037019

Dimensions

Height
0.92 Inch
Hole Size
0.27 in
Length
1-1/2 Inch
Overall Length
1.50 in
Pad Width
0.63 in
Width
0.63 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Slot, Length: 1.5 IN, Installation Torque: 50 IN-LB, Width: 0.63 IN, Height: 0.8 IN, Dimension D: 0.81 IN, Dimension N: 0.44 IN, Dimension T: 0.19 IN
