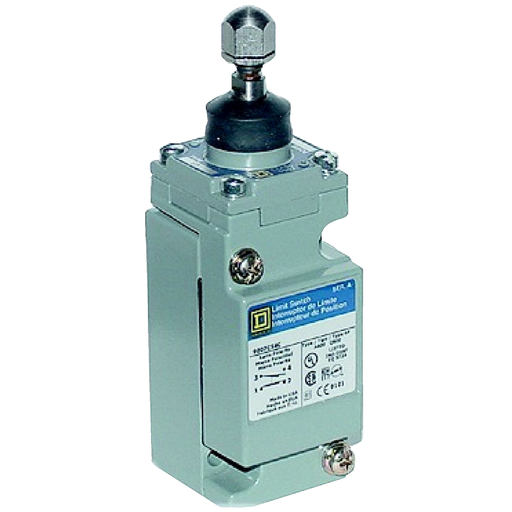

Square D 9007C54ED 600 Volt 10 Amp 1NO 1NC Push Rod Plunger Plug-In Heavy Duty Limit Switch

Manufacturer: Square-D / Schneider | Catalog # 9007C54ED | Springfield Electric Part # 186161

$339.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
These industrial heavy duty limit switches are applied in almost any environments. This adjustable top push rod plunger limit switch has a standard body and receptacle for most applications. Limit switch has one normally open and one normally closed contact. The snap action contacts will change state as the top push rod is moved. Contacts have an A600 and Q600 inductive ratings and 10A resistive rating. The adjustable top push rod plunger head requires 3 lb. of force to operate. This limit switch is 5.22 inches tall, 1.55 inches wide and 1.79 inches deep. This limit switch is NEMA 1, 2 4, 6, 6P, 12 and 13 rated. It is also rated IP67. Switch has a 0.50 inch conduit entry with 14 NPT. Limit switch is UL listed and CSA certified. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Technical Information

Action
Snap action;On end
Actuator
STAINLESS STEEL SPRING RETURN PLUNGER ADJUSTABLE)
Amperage
10 Amp
Applications
Standard box
Body Material
Zinc
Body Type
Plug-in NULL
Contact Configuration
NC-NO
Contact Material
Silver
Contact Rating
NEMA A600/Q600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Plunger head NULL
Material
Metal
Net Weight
1.25 lb
Number of Poles
1 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Size
1.79 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
1.2 A 600 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007C

General Product Info

12-Digit UPC
785901541943
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
00785901541943
Product UPC
78590154194

Dimensions

Depth
1.79 Inch
Height
5.22-5.22 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
