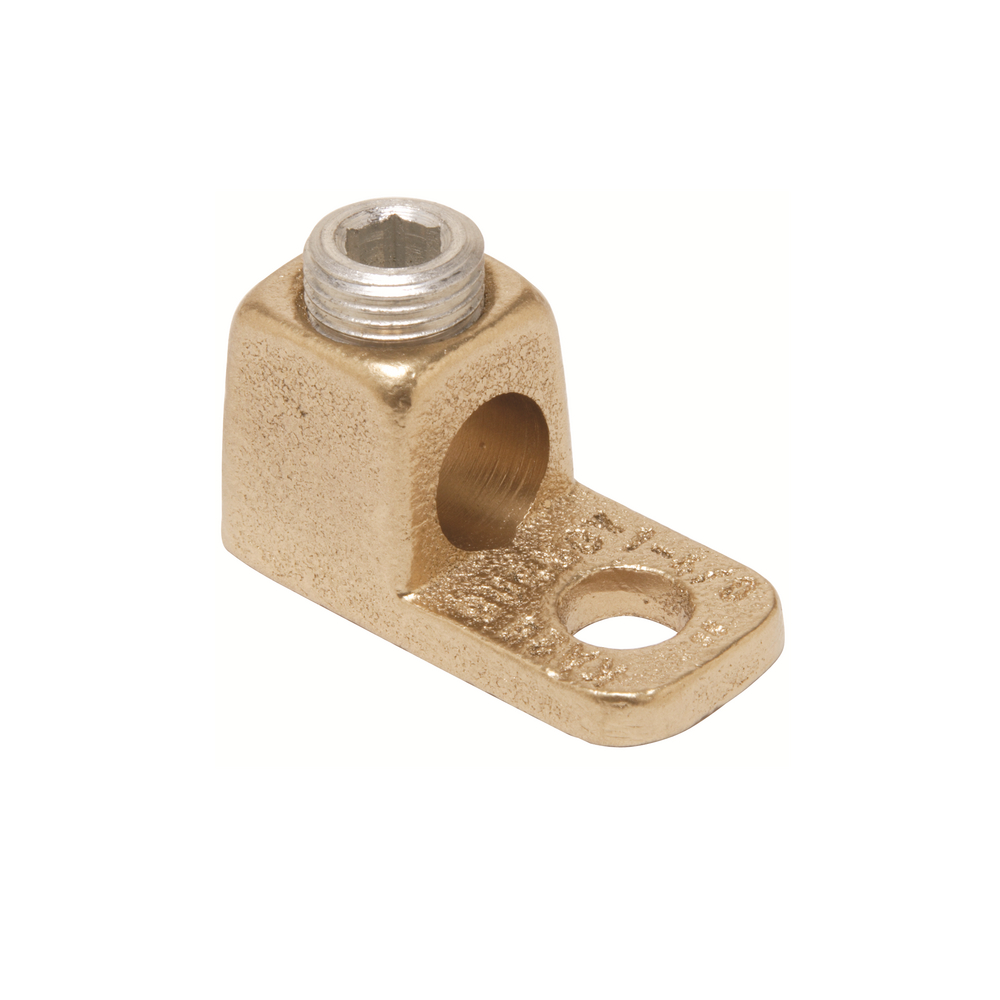

BUR KA34 4/0-500 CU LUG ST SCR 1H

Manufacturer: Burndy | Catalog # KA34 | Springfield Electric Part # 186176
$70.92/ea
ea
Log in or register to view your price, purchase history, and more!
72 available

For Pick Up

at Springfield, IL Opens Friday 8:00am CT
72 available

For Delivery

Not available for delivery*
Check another branch
Product Spec Sheet
Copper Terminal, 1 Hole, 4/0 AWG (Str)-500 kcmil, 1/2" Stud, 1 Screw

Technical Information

Applications
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Terminal Blocks
Bolt Size
13/16 IN
Conductor Size
4/0 AWG
Conductor Type
CU C Str-Size
Connection Type
Terminal
Material
Copper
Plated?
No
Plating Type
Unplated
Screw Type
Allen
Stud Size
1/2 in
Temperature Rating
194
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810365854
GTiN
00781810365854
Product UPC
78181036585

Dimensions

Height
2-3/32 Inch
Hole Size
0.56 in
Length
2-9/16 Inch
Overall Length
2.55 in
Pad Width
1.38 in
Thickness
7/25 in
Width
1.38 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Compact, Economical, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Dimension N: 9/16 IN, Dimension K: 9/16 IN, Dimension T: 9/32 IN, Tongue Width: 1-3/8 IN, Installation Torque: 375 IN-LB, Length: 2-9/16 IN, Stud/bolt Hole Size: 1/2 IN, Height: 2-3/32 IN
