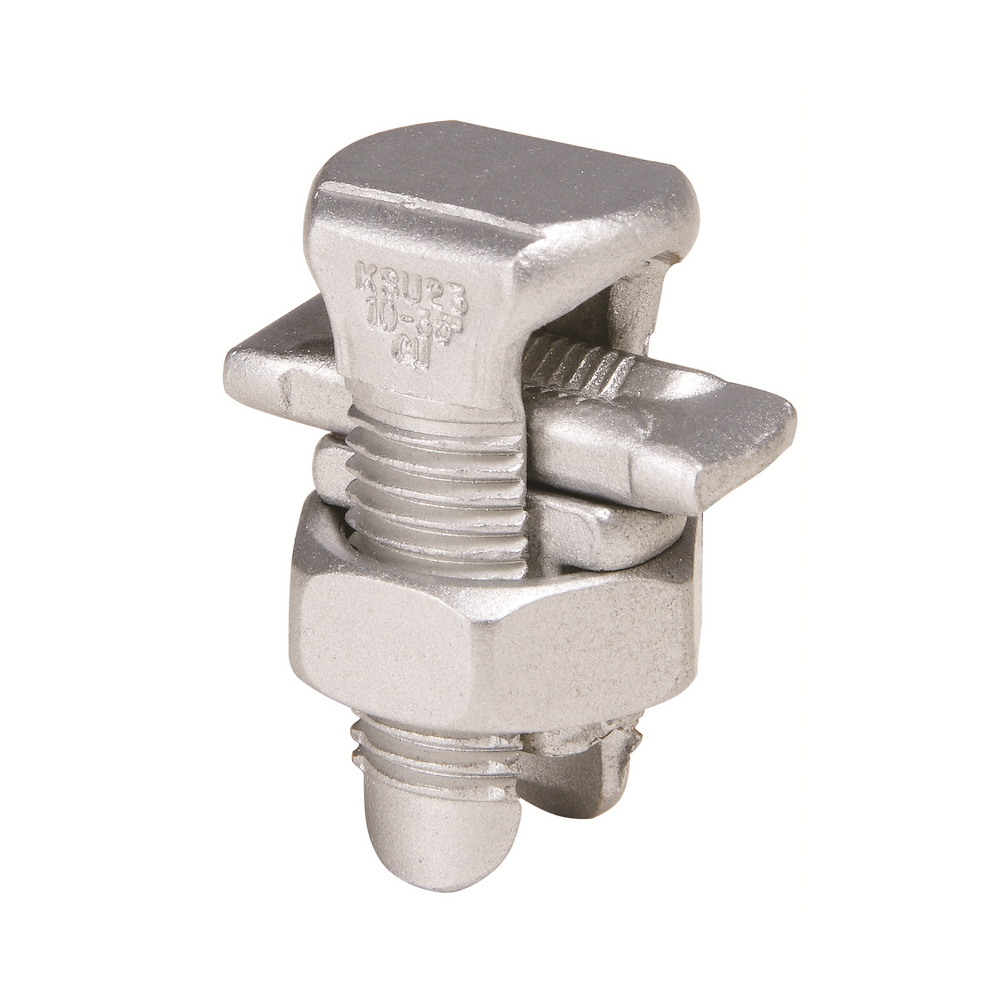

Tin-plated, high strength copper alloy SERVIT with spacer. Spacer seperates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors.
For All Combinations of Copper, Aluminum, ACSR, AAAC, 5005, and Steel
Conductor Type
ACSR, 5005, AAAC, Stranded Aluminum, Stranded and Solid Copper (Run and Tap), Steel (Nominal Diameter) (Tap)
Connection Type
Split Bolt
Material
Copper
Plated?
Yes
Plating Type
Tin - Electro Plated
Type
KSU, Universal
Manufacturer Information
Brand
Burndy
Sub Brand
Universal Servit®
General Product Info
Finish
Tin Plated
GTiN
00781810035009
Product UPC
78181003500
Dimensions
Height
0.53 Inch
Length
1.14 Inch
Overall Length
23 mm
Width
.42 in
Certifications and Compliance
Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
Tin-Plated, High Strength Copper Alloy SERVIT With Spacer, Spacer Separates Dissimilar Conductors And Provides Long Contact Length That Prevents High Pressure Point Contacts Between Run And Tap Conductors, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Steel (Nominal Diameter), Installation Torque: 165 IN-LB, Length: 0.92 IN, Cross Flats: 0.62 IN, Width: 0.42 IN
