BUR K2A31U TWO:4STR-350 DUAL RATED

Manufacturer: Burndy | Catalog # K2A31U | Springfield Electric Part # 187068
$69.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

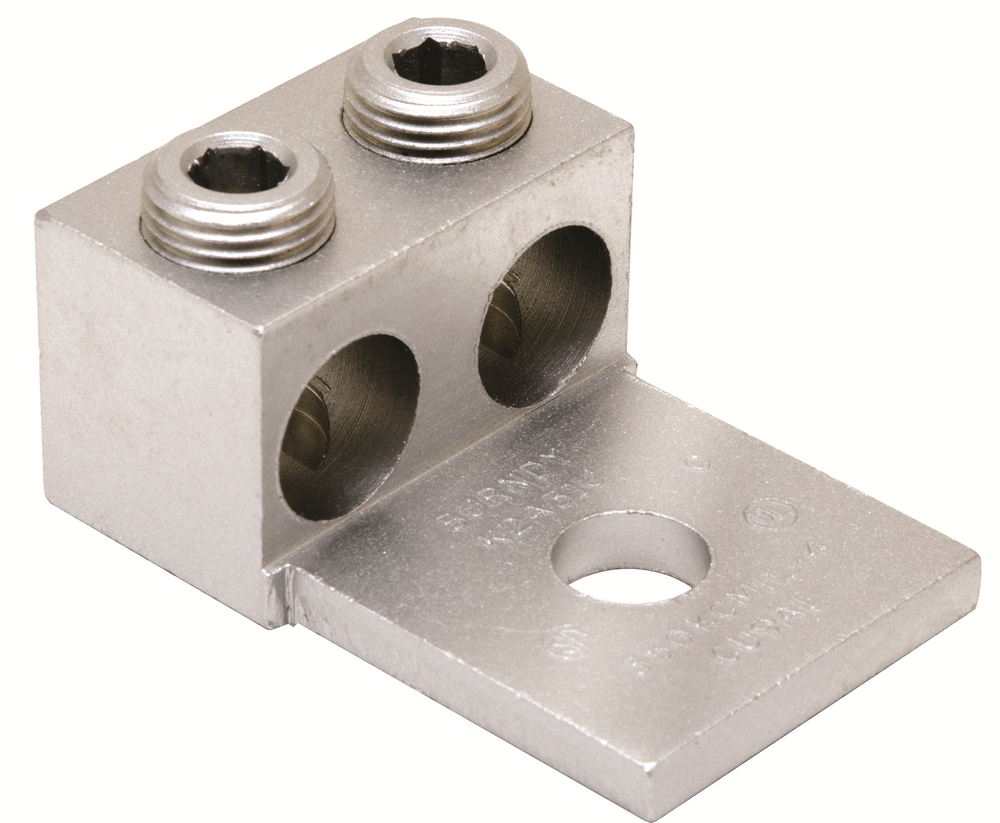

Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-350 kcmil, 1/2" Stud, 2 Screws, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Aluminum And Copper Conductors
Bolt Hole Size
0.50 in
Bolt Size
1/2 in
Conductor Size
4 AWG-350 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Terminal
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Number of Holes
1 Hole
Plated?
No
Plating Type
Unplated
Temperature Rating
194
Type
K2A-U, Universal, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810600153
Finish
Electro-Tin Plated
GTiN
00781810600153
Product UPC
78181060015

Dimensions

Height
1.26 Inch
Hole Size
0.56 in
Length
2.88 Inch
Overall Length
2.88 in
Pad Width
1.94 in
Width
1.94 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Dimension D: 1.69 IN, Dimension N: 0.88 IN, Dimension T: 0.25 IN, Installation Torque: 275 IN-LB, Length: 2.88 IN, Width: 1.94 IN, Height: 1.25 IN, Stud/bolt Hole Size: 1/2 IN
