BUR K22A36U2 FOUR:2 STR-600 DUAL RA

Manufacturer: Burndy | Catalog # K22A36U2 | Springfield Electric Part # 187114
$171.14/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

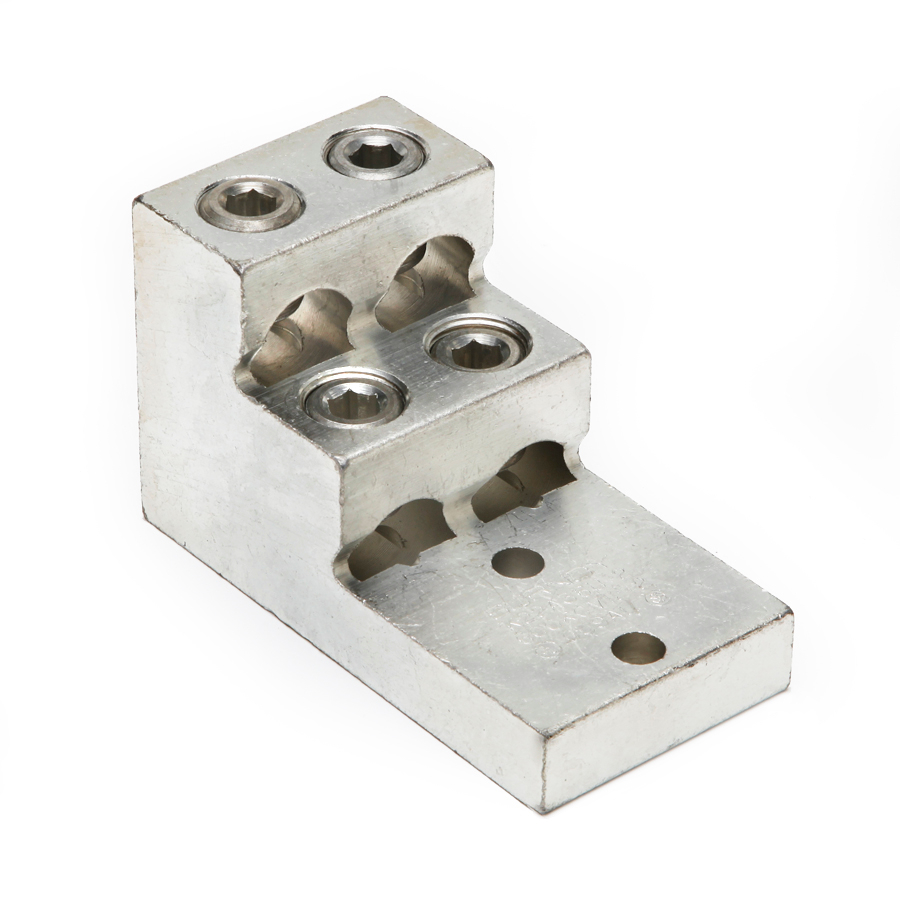

Aluminum Universal Terminal, 2 Hole, Four: 2 AWG (Str)-600 kcmil, 3/8" Stud, 1.38" Stud Hole Spacing, 4 Screws, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Aluminum and Copper Conductors
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminum/Copper
Connection Type
Terminal
Material
Aluminum
Mounting Hole Size
1.38 in
Number of Conductors
4
Plated?
Yes
Plating Type
Tinned
Temperature Rating
194
Type
K22A-U, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810370346
Finish
Tin Plated
GTiN
00781810370346
Product UPC
78181037034

Dimensions

Height
3.03 Inch
Hole Size
10 mm
Length
4.91 Inch
Overall Length
4.91 in
Width
2.49 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Universal terminal, These dual-rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin-plated to provide low contact resistance
Conductor Type
  • AL C Str-Size
  • CU C Str-Size
