BUR UGS350ULDB UNDERGRND SPLICE 12-

Manufacturer: Burndy | Catalog # UGS350ULDB | Springfield Electric Part # 187341
$72.48/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Closes 6:00pm CT
0 available

For Delivery

Not available for delivery*
Check another branch
*Usually ships within 8 to 12 days
Product Spec Sheet Accessories Sheet

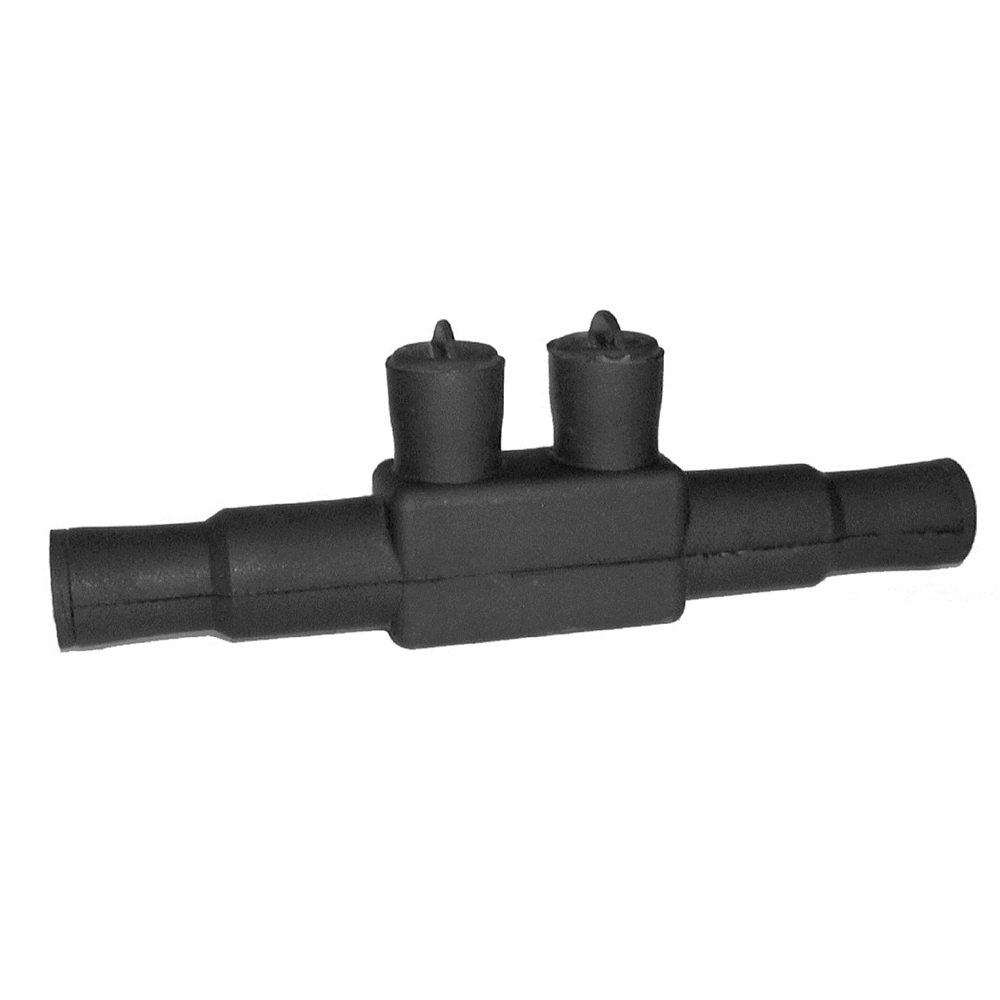

In-Line Splice/Reducer For Direct Burial, 12 AWG - 350 kcmil, 5/16", Dual rated AL9CU for CU or AL

Technical Information

Applications
For Direct Burial
Conductor Size
12 AWG-350 kcmil
Conductor Type
Aluminum and Copper
Connection Type
In-Line
Insulation Type
Rubber
Material
Rubber
Plated?
No
Plating Type
Unplated
Size
2.81 IN Height X 8.50 IN Length
Temperature Rating
194
Type
Inline, Underground

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

GTiN
00781810343807
Product UPC
78181034380

Dimensions

Height
2.81 Inch
Length
8-1/2 Inch
Overall Length
8.50 in
Width
2.81 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • EPDM Rubber Covered 6061-T6 Aluminum Connector, Dual Rated AL9CU For Copper Or Aluminum Conductor, UL Listed And CSA Certified For Direct Burial, Broad Range Taking Capability, Low Installation Cost, Installation Torque: 350 IN-LB, Number Of Screws: 2, Hex Size: 5/16 IN
