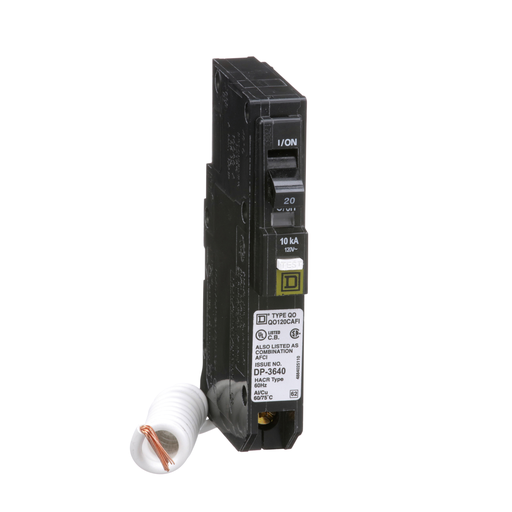

Square D QO120CAFI Arc-Fault Miniature Circuit Breaker 20A 120V 1Ph 1P, Pigtail Neutral

Manufacturer: Square-D / Schneider | Catalog # QO120CAFI | Springfield Electric Part # 187516
$92.51/ea
ea
Log in or register to view your price, purchase history, and more!
18 available

For Pick Up

at Springfield, IL Opens Friday 8:00am CT
18 available

For Delivery

Not available for delivery*
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page
Square D™ QO™ and QOB Miniature Circuit Breakers, QO120CAFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed.

Technical Information

Amperage
20 Amp
Applications
HACR rated
Circuit Breaker Type
Combination ARC-fault
Conductor Size
12-8 AWG (AL)/14-8 AWG (CU)
Current
20 Amp
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Plug-in
Net Weight
0.227 kg
Number of Poles
1 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Pigtail neutral;Pressure plate
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901438359
GTiN
00785901438359
Product UPC
78590143835

Dimensions

Depth
74 mm
Height
121 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
19 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
