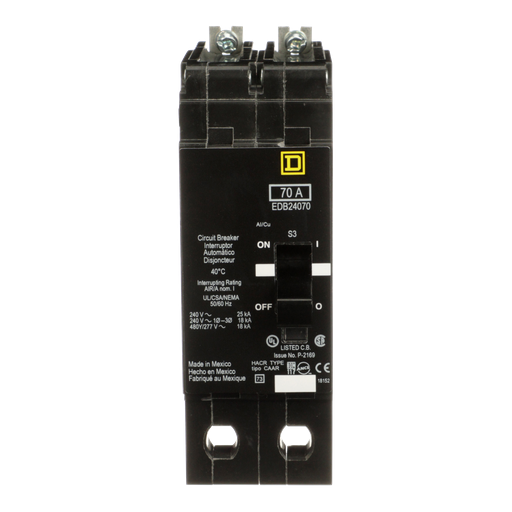

Square D EDB24070 480Y/277 Volt 70 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # EDB24070 | Springfield Electric Part # 187554

$740.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
E Frame thermal magentic circuit breakers are for use in NF panelboards. These circuit breakers will protect against overload and short circuit conditions. Breakers have a trip indicator. This bolt on circuit breaker has a maximum voltage rating of 480Y/277 VAC. This 2 pole 70 A breaker is rated for HACR applications. Breaker has a breaking capacity of 18 kA at 480Y/277 VAC. Circuit breaker has other breaking capacity ratings based on operting voltage. The breaking capacity code for this circuit breaker is D. Electrical connections are made using aluminum lugs. The lugs on this circuit breaker will accept 14 AWG to 2/0 AWG copper and 12 AWG to 2/0 AWG aluminum wire. Two spaces are used by this circuit breaker. Circuit breaker is 5.66 inches tall, is 1.96 inches wide and 4.05 inches deep. E frame circuit breakers are UL Listed and CSA certified.

Technical Information

Amperage
70 Amp
Applications
HACR rated
Frame
E-FRAME
Interrupt Rating
18 kAIC
Line Rated Current
70 A
Module Type
E-Frame NULL
Mounting Type
Bolt-On
Net Weight
3 lb
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
TC Connection
LUGS #12 TO #2/0 AWG(AL) - #14 TO #2/0 AWG(CU)
Trip Range
1800 A
Trip Type
Thermal-magnetic
Type
Miniature circuit-breaker
Voltage
277/480 VAC

Manufacturer Information

Brand
Square D
Sub Brand
EDB

General Product Info

12-Digit UPC
785901311034
GTiN
00785901311034
Product UPC
78590131103
Weight
3 lb

Dimensions

Depth
4.05 Inch
Height
5.66 Inch
Length
4.05 Inch
Warranty Length
18 mth
Width
1.96 in
